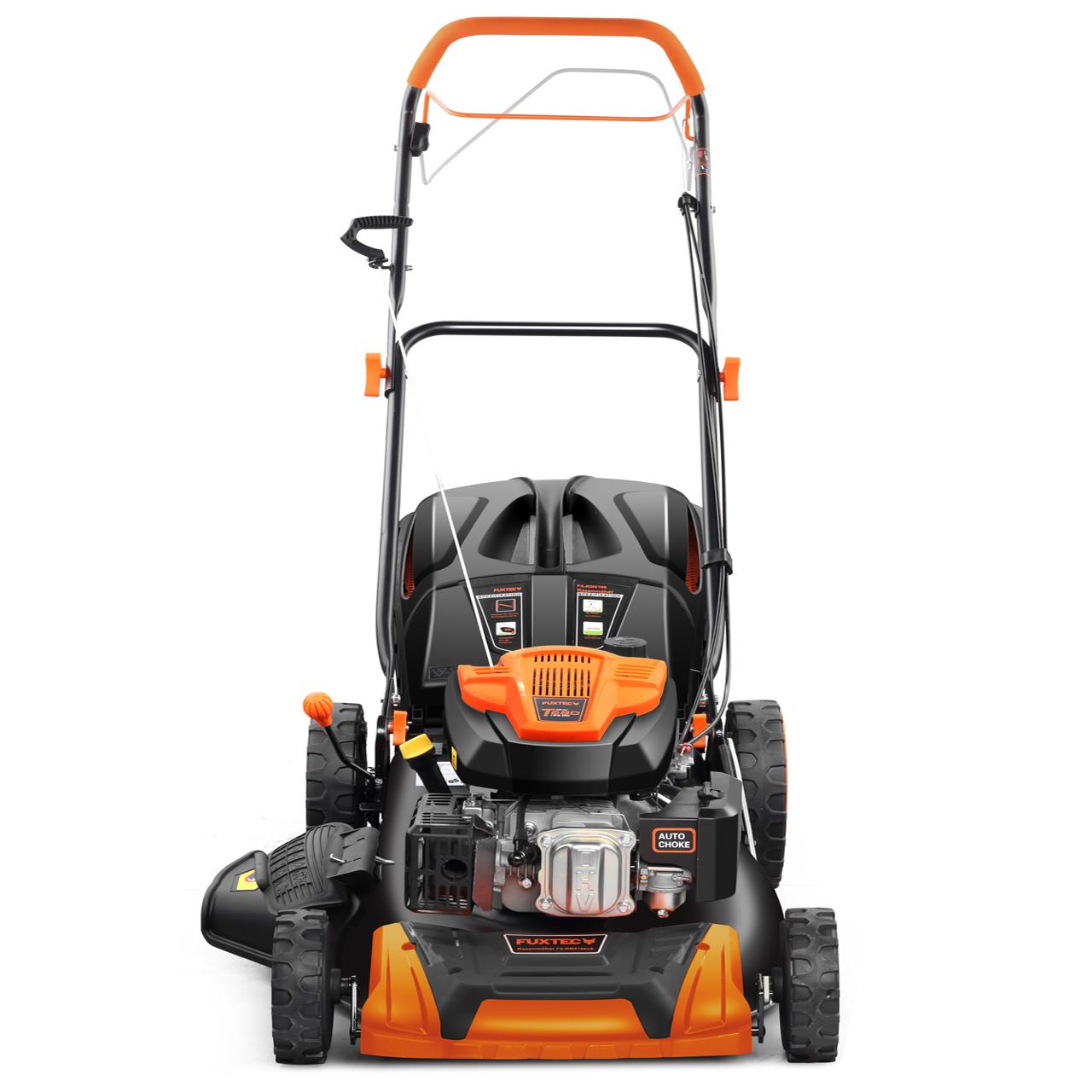

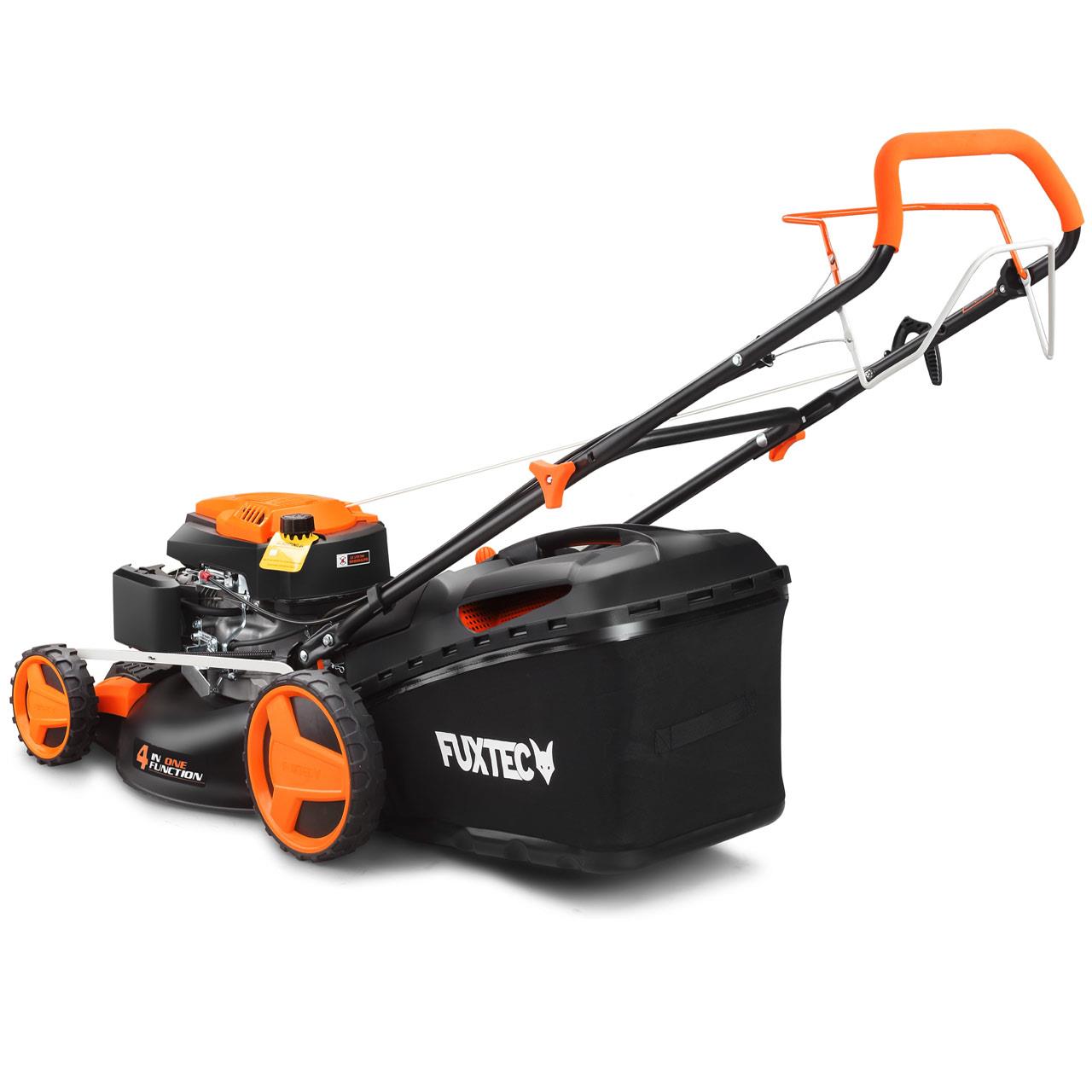

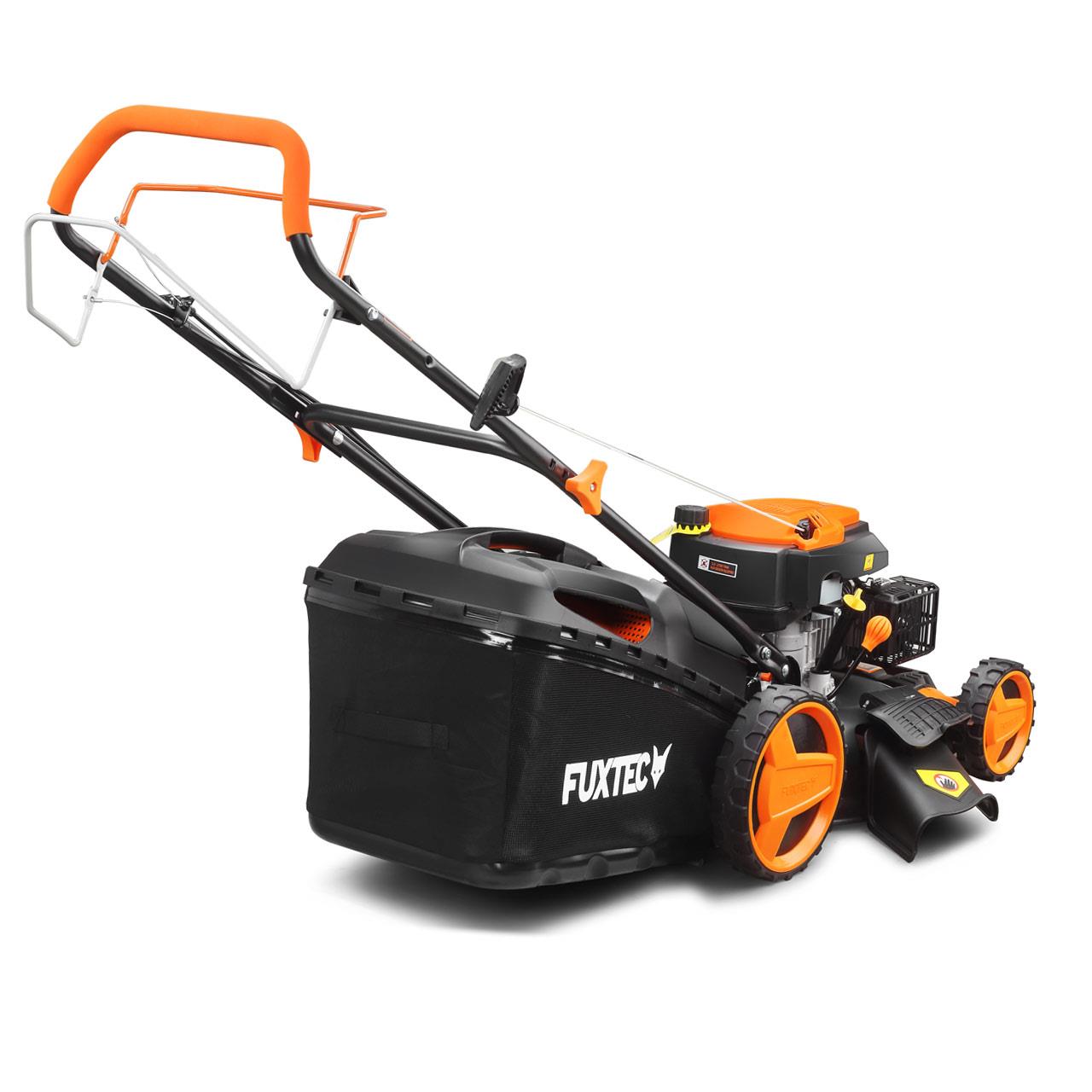

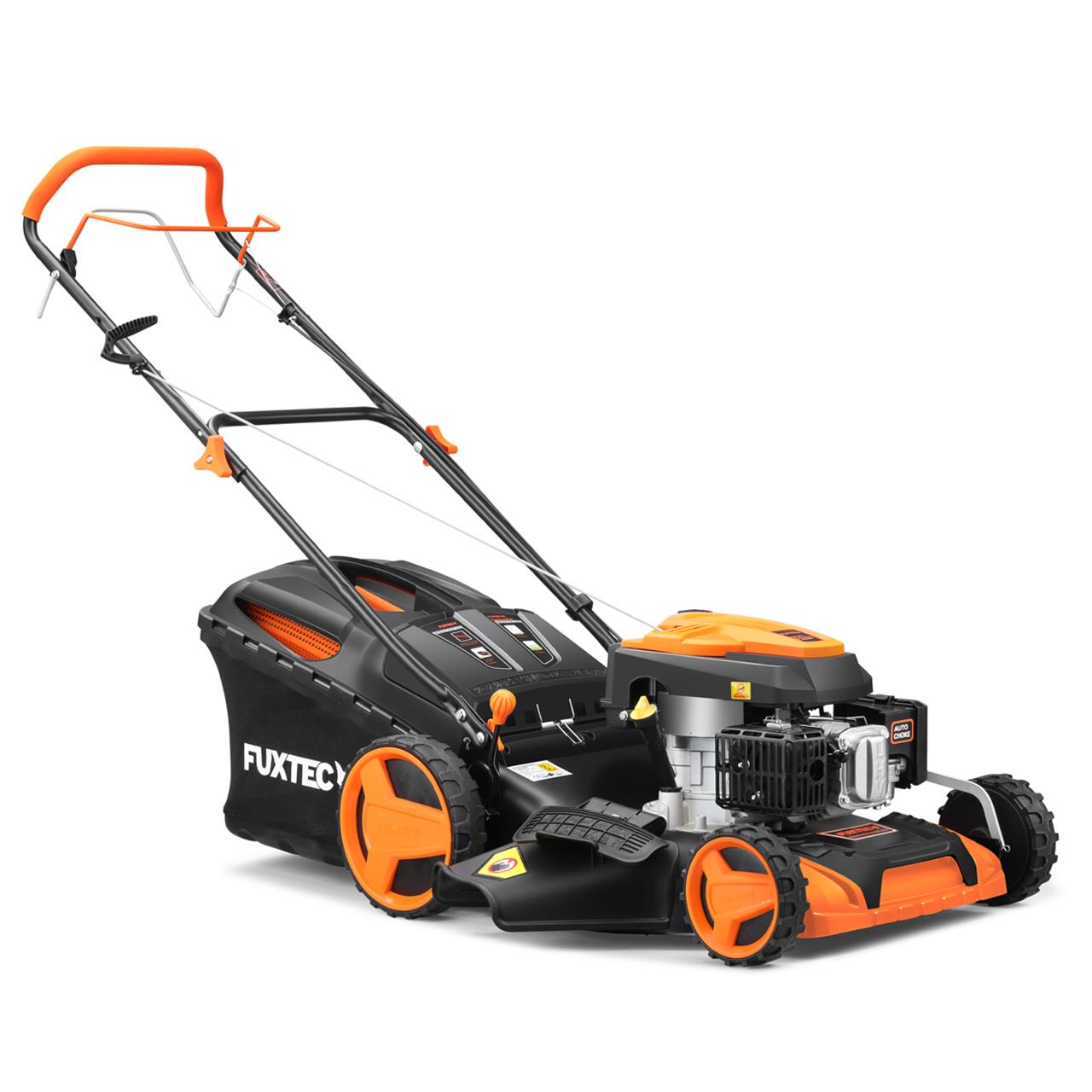

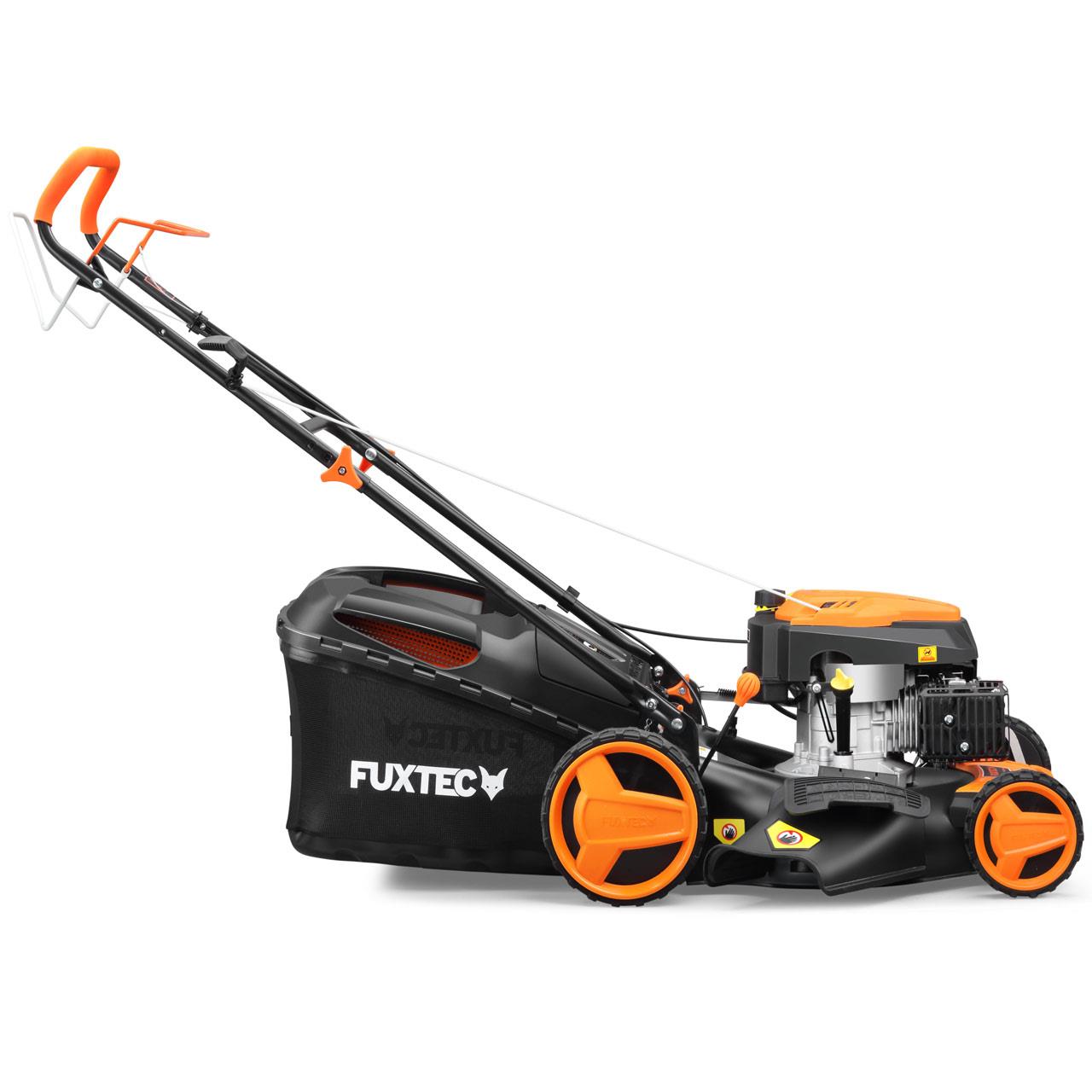

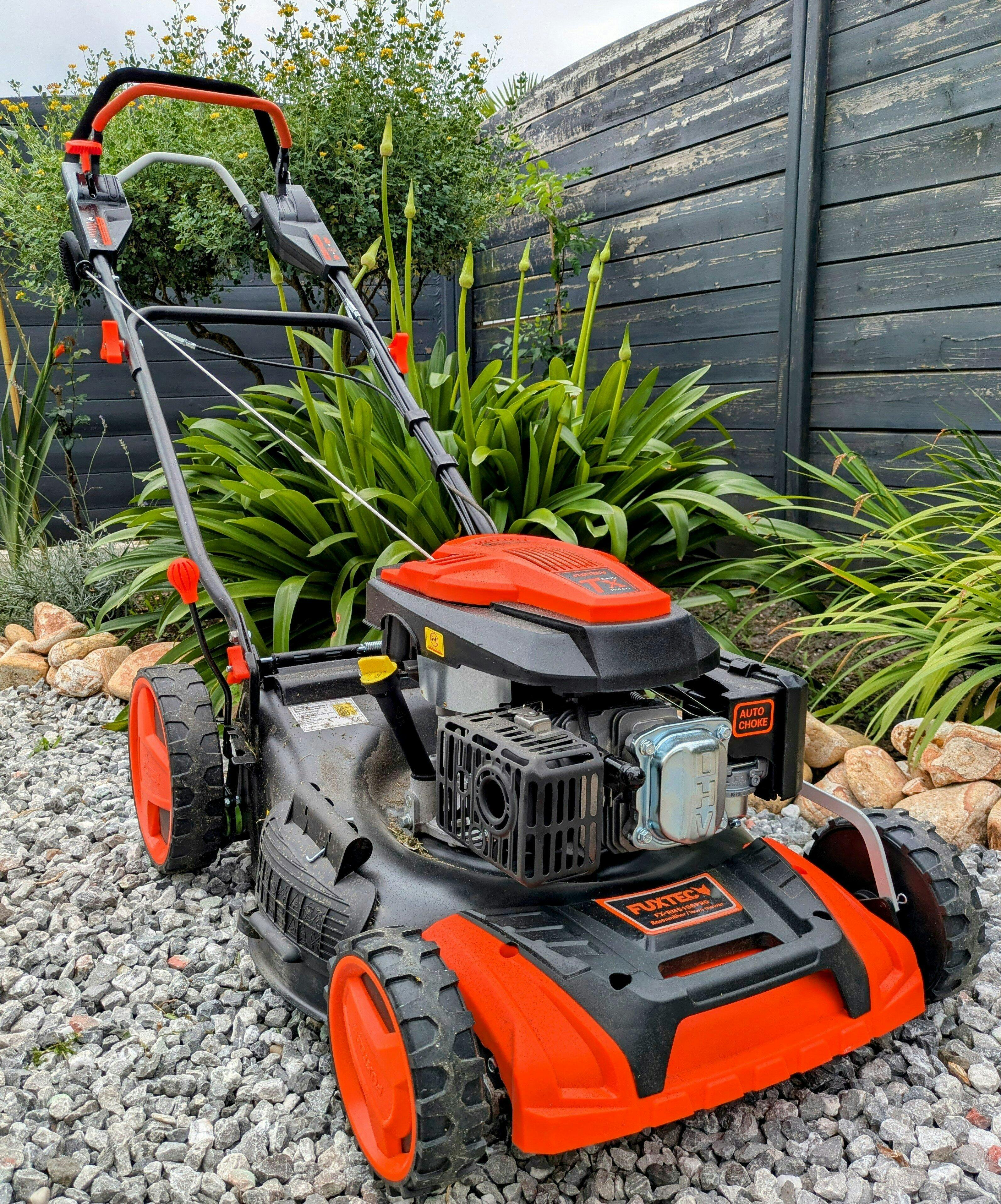

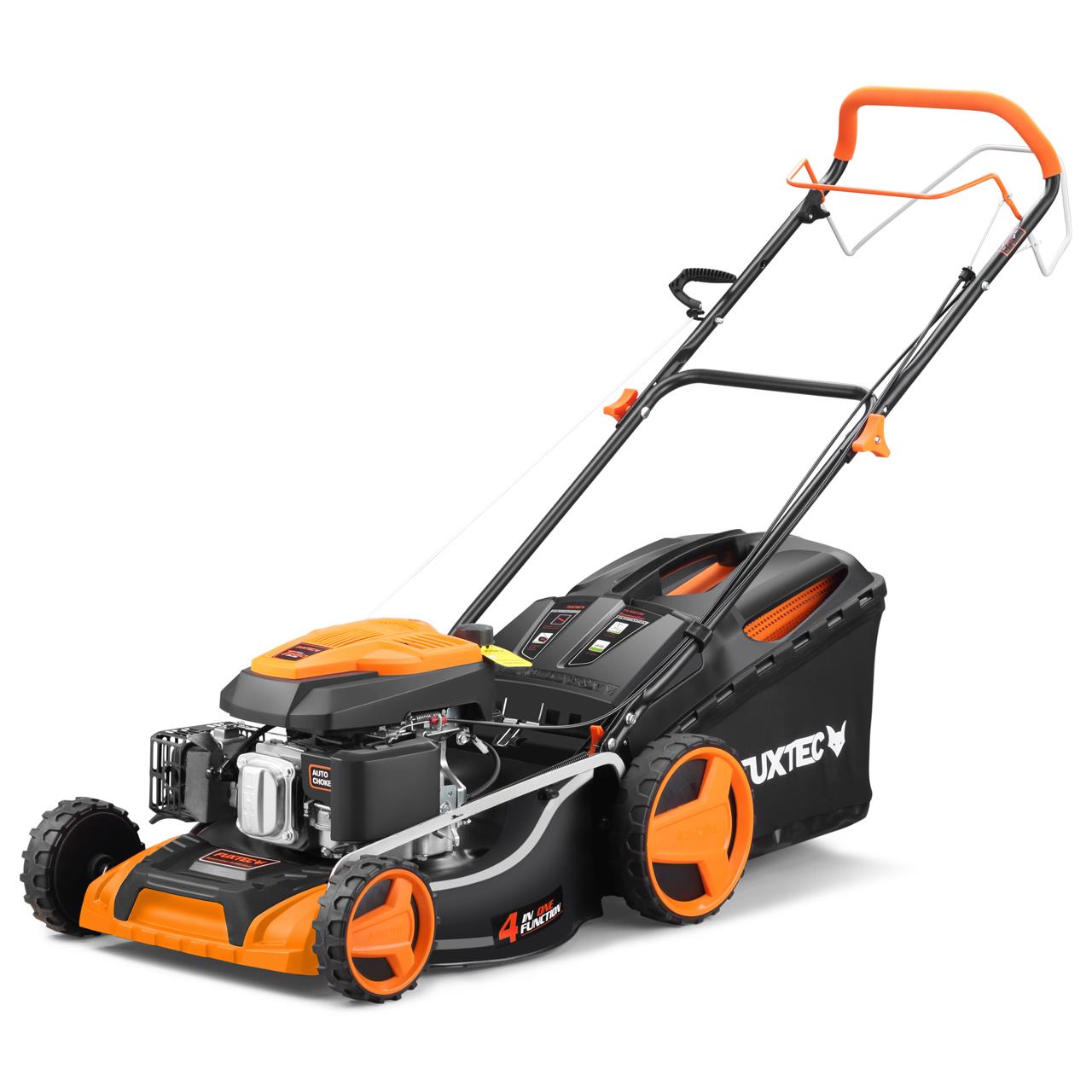

Gasoline Lawn Mower FX-RM5196

FUXTEC FX-RM5196 – Petrol Lawn Mower

High-performance 196cc mower with 6.0 HP for reliable results

A lawn mower to beat them all!

• Rear-wheel drive with EasyClean system – Self-propelled design makes mowing effortless. The EasyClean function lets you connect a garden hose to flush out the cutting deck quickly and easily.
• Central cutting height adjustment – 8-step adjustment from 25 mm to 75 mm for a precise finish.
• Wide 501 mm cutting width – Covers more ground with every pass.
• Robust sheet steel housing with side discharge – Durable and built to last.
• Large 60 L grass catcher – Easy to remove and empty.
• Big Wheel design – 255 mm rear and 175 mm front wheels with ball bearings for smooth handling and stability, even on uneven terrain.
• High-quality mulching blade – Precision-ground steel blade designed for durability and efficiency.
• High-quality ground mulching blades made from special steel

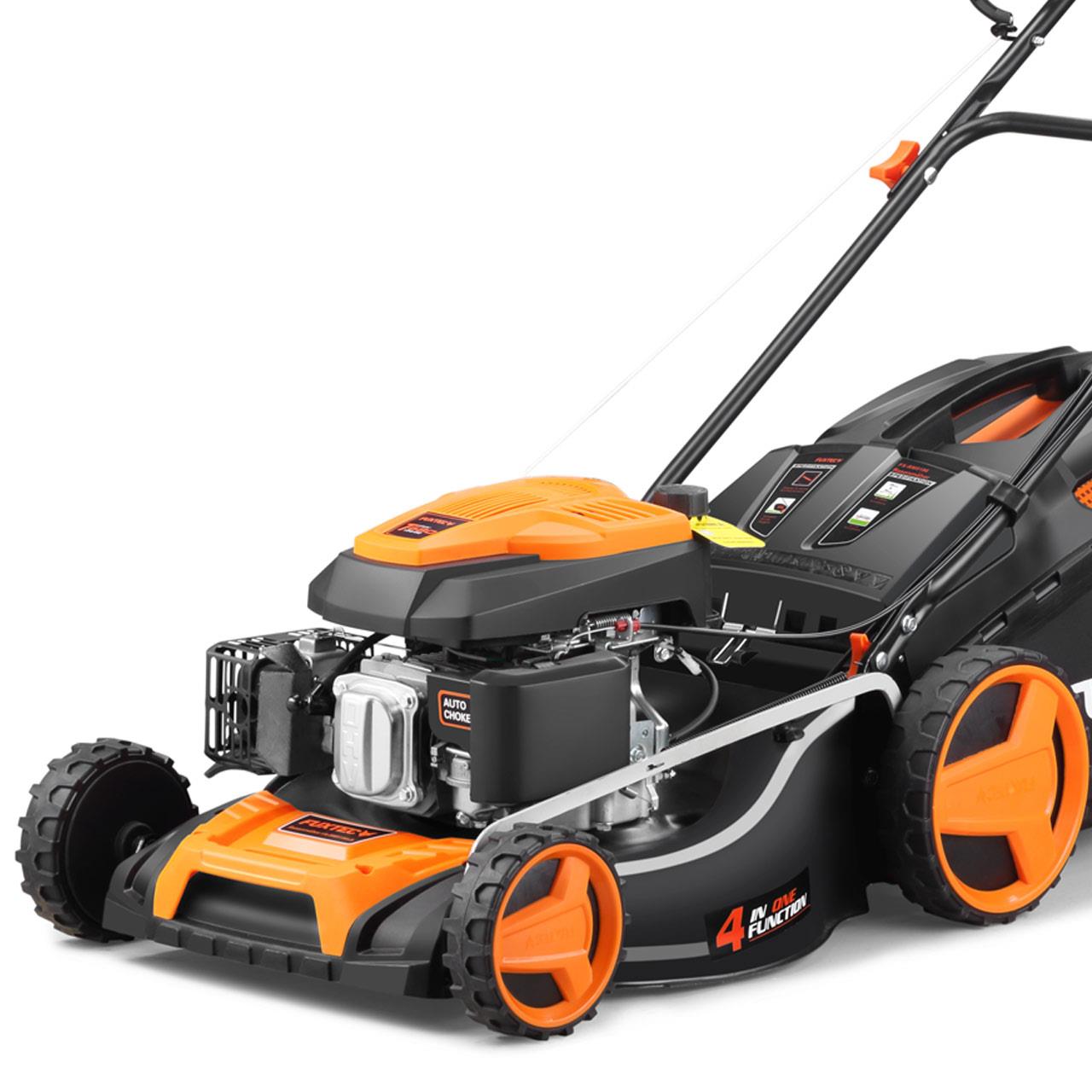

Auto choke system
The intelligent Auto Choke system automatically adjusts for optimal starting and smooth running in all mowing conditions

• No need to operate the primer pump or choke manually.
• No waiting for the engine to warm up before mowing.
• Reliable starts every time — even for users with no experience.

4-in-1 Mowing Functions

The FX-RM5196 offers mowing, collecting, mulching, and side discharge in one versatile ma

• Mulching function – Grass clippings are finely shredded and returned to the lawn as natural fertiliser. This keeps soil cool in summer, improves water retention, and reduces weed growth.
• Collecting function – Use the large 60 L catcher for a clean lawn with no clippings left behind.
• Side discharge – Quickly clears tall or damp grass without clogging.
• Standard mowing – Reliable, clean cuts with every pass.

Mulching Made Easy

The FX-RM5196 finely shreds grass clippings into a natural mulch that is spread back onto the lawn. This mulch returns nutrients to the soil, helps retain moisture in hot weather, reduces weed growth, and protects the grass roots. It’s an eco-friendly way to keep your lawn healthier while saving time on disposal.

This makes mowing with drive in the back fun! - No problem with the garden tools from FUXTEC.

FUXTEC tip: For optimum & long-lasting operation of our devices, we recommend our original FUXTEC oils - Made in Germany

Package 1 of 2

Petrol lawn mower
Side discharge
Mulching kit

Package 2 of 2

Catcher
Intermediate handle frame
Mounting screws
Operating instructions

Fuel: Bleifreies Benzin
ENGINE TYPE: Benzin
Maximum engine speed: 2800
Sound power level: 98
Net weight: 35
Displacement: 196
Power: 4
Adjustable cutting height - in mm: 25-75
Self-propelled: Ja
Model: FX-RM5196
Power at rated speed - in kW: 3,9
Vibration at handle - in m/s²: 6,36
Grass catcher volume - in l: 60
Starting device: Seilzugstarter
Maximum engine power - in kW: 4,4
Rear discharge: Ja
Flexspeed drive: Nein
Engine oil: SAE30 oder höher
Rated speed - in U/min: 2800
Sound pressure level - in dB(A): 83,2
Tank capacity oil - in l: 0,6
Consumption - l/h: 395
Material: Metall
Mulching Function: Ja
Electric Start: Nein
Rear Wheel Drive: Ja
Recommended Lawn Area - in m²: 1400
Side Discharge: Ja
Cutting Height - in cm: 2,5-7,5
Cutting Width - in cm: 50,1
Gasoline Tank Capacity - in ml: 800
Working Width - in cm: 51

Download PDF Datasheet
