FUXTEC FX-RM5170 Petrol Lawn Mower

NEW FUXTEC FX-RM5170 Petrol Lawn Mower

A strong yet lightweight mower with a 170cc 4-stroke engine for efficient and economical lawn care.

The FUXTEC FX-RM5170 is the most economical 51 cm petrol lawn mower in the FUXTEC family. With a 170cc 4-stroke engine, rear-wheel drive, and the practical EasyClean function, it delivers powerful performance with less effort – ideal for medium to large lawns.


• Wide cutting width – 51 cm (508 mm) for efficient mowing across larger areas
• Adjustable cutting height – Central 7-stage adjustment (25–75 mm) for a precise lawn finish
• Robust build – Durable sheet steel housing with side discharge for tough conditions
• 4-in-1 function – Mowing, collecting, mulching, and side discharge in one machine
• Large grass catcher – 60 L capacity, easily removable for quick emptying
• High-quality blades – Precision-ground mulching blades made of special steel for a clean cut

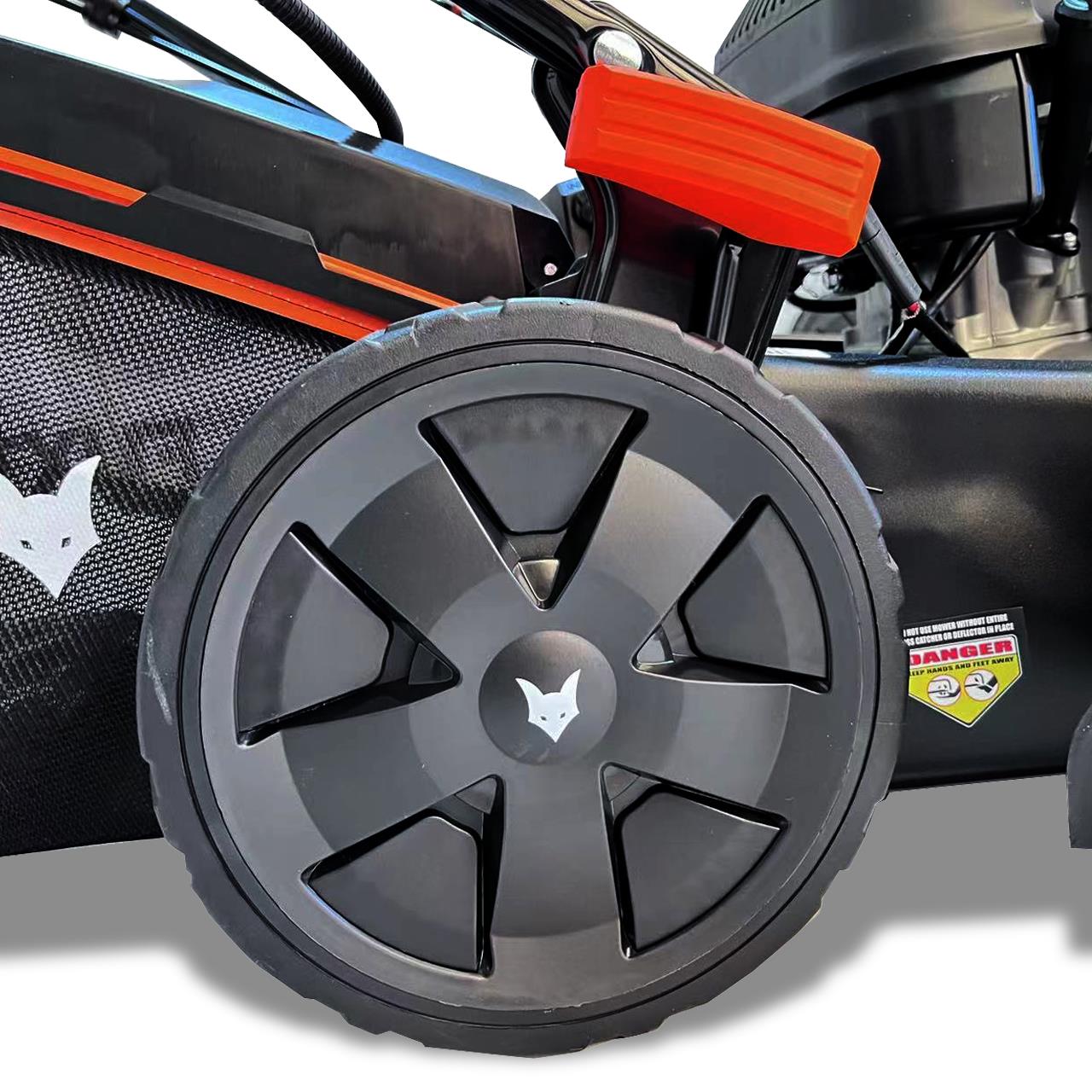

• Big Wheel design – Ball-bearing wheels (230 mm rear / 180 mm front) for stability and smooth handling
• Rear-wheel drive – Self-propelled system reduces effort when mowing
• Front bumper with handle – Protects and makes carrying easier

EasyClean System
The EasyClean system makes cleaning the cutting unit quick and simple. Connect a garden hose to the EasyClean port, switch on the water while the blade is running, and the rotation distributes water evenly to flush away dirt and residue – keeping your mower clean and well-maintained with minimal effort.

Auto Choke System
The intelligent Auto Choke system ensures effortless starting in all mowing conditions. There’s no need to operate a primer pump or choke manually – just pull the starter and begin mowing straight away. No warm-up time required, even for inexperienced users.

Mulching Function
The Mulching Function finely shreds grass clippings and returns them to the lawn as natural fertiliser. This improves soil nutrients, keeps roots cool in hot weather, helps the lawn retain moisture, and reduces weed growth. Mulch decomposes quickly, meaning less waste and a healthier, greener lawn.

With rear-wheel drive, mowing becomes effortless and enjoyable - powered by FUXTEC innovation.

FUXTEC tip: For optimum and long-lasting operation of our devices, we recommend our original FUXTEC oils - Made in Germany

Fuel: Unleaded petrol
ENGINE TYPE: OHV 4-stroke
Maximum engine speed: 2800
Sound power level: 98
Net weight: 28
Displacement: 170
Power: 2,9
Adjustable cutting height - in mm: 25-75
Self-propelled: Yes - rear-wheel drive
Vibration at handle - in m/s²: 3,64
Grass catcher volume - in l: 60
Starting device: Draw-wire starter
Maximum engine power - in kW: 2,9
Rear discharge: Yes
Flexspeed drive: No
Engine oil: SAE30 or higher
Rated speed - in U/min: 2800
Sound pressure level - in dB(A): 82,9
Tank capacity oil - in l: 0,5
Material: Metal
Mulching Function: Yes
Electric Start: No
Rear Wheel Drive: Yes
Recommended Lawn Area - in m²: greater than 1001
Side Discharge: Yes
Cutting Height - in cm: 2,5-7,5
Cutting Width - in cm: 51
Gasoline Tank Capacity - in ml: 1000
Working Width - in cm: 51

Download PDF Datasheet
